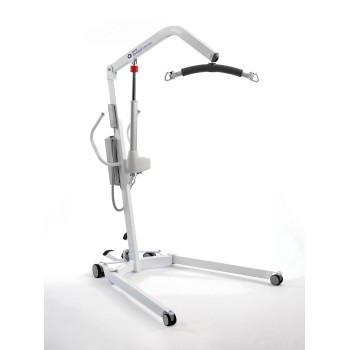

Oxford Maxi 180 Electric Hoist

Oxford Maxi 180 Electric Hoist

Key Features:


- Safe working Load (SWL) of 180 kg / 27st
- Interchangeable Spreader Bars
- Emergency Descent for safety
- Large Push bar for easy manoeuvrability
- Smart TM Monitor for diagnostics and data feedback

Specifications:


Safe Working Load: 180 kg /27 st

Length: 1315 mm

Maximum Overall Height: 2150 mm

Minimum Overall Height: 1560 mm

Maximum Spreader Bar Height: 1970 mm

Minimum Spreader Bar Height: 780 mm

Spreader Bar Height at Maximum Reach: 1420 mm

Spreader Bar Height at Maximum Height: 550 mm

Spreader Bar Height at Minimum Height: 540 mm

Maximum Reach: 730 mm

Turning Radius: 1310 mm

Legs Open External Width: 1230 mm

Legs Open Internal Width: 1140 mm

Legs Closed External Width: 660 mm

Legs Closed Internal Width: 580 mm

Overall Height of Legs: 100 mm

Ground Clearance: 15 mm

Front Twin Castors: 75 mm

Rear Braked Castors: 100 mm


Weights:


Total: 43 kg

Mast and Boom Assembly: 24 kg

Base Assembly: 19 kg

Oxford Maxi 180 Electric Hoist

The Oxford Maxi 180 Electric Hoist has a maximum lift height of almost two metres from the floor. This makes the hoist perfect for nursing situations when the patients are required to be lifted onto all types of surfaces.

The design and shape of the Maxi is compact allowing great manoeuvrability and storage options. Many Schools and organisations use the hoist to assist disabled adults and children to access trampolines with it's excellent height of 2150 mm. The Maxi 180 is only available in the electric version.

Free Quickfit Poly Sling worth £80 with this order!

The Oxford Maxi 180 also incorporate the unique SmartTm Monitor which:

  • Identifies service interval periods
  • Identifies total number of actuations and work completed
  • Provides a battery level indicator
  • Identifies lifts above the SWL providing safety


What's Included:

Battery & Charger

  • Brands Oxford
  • Product Code: OXF-MAXIE-UK
  • Availability: In Stock

    RRP £2,667.00 excl. VAT

  • £2,068.00 excl. VAT
  • £2,481.60 (Incl. VAT)

Downloads

Oxford Classic Range User Guide

Oxford Classic Range Parts Manual

THIS PRODUCT IS AVAILBALE TO BUY VAT EXEMPT.

Tags: "Oxford Maxi 180 Electric 180Kg SWL", Oxford, Maxi, 180, Electric, 140Kg, SWL, maxi 180
